CueScript 15" PTZ Teleprompting system


CueScript 15" PTZ Teleprompting system

$0.00

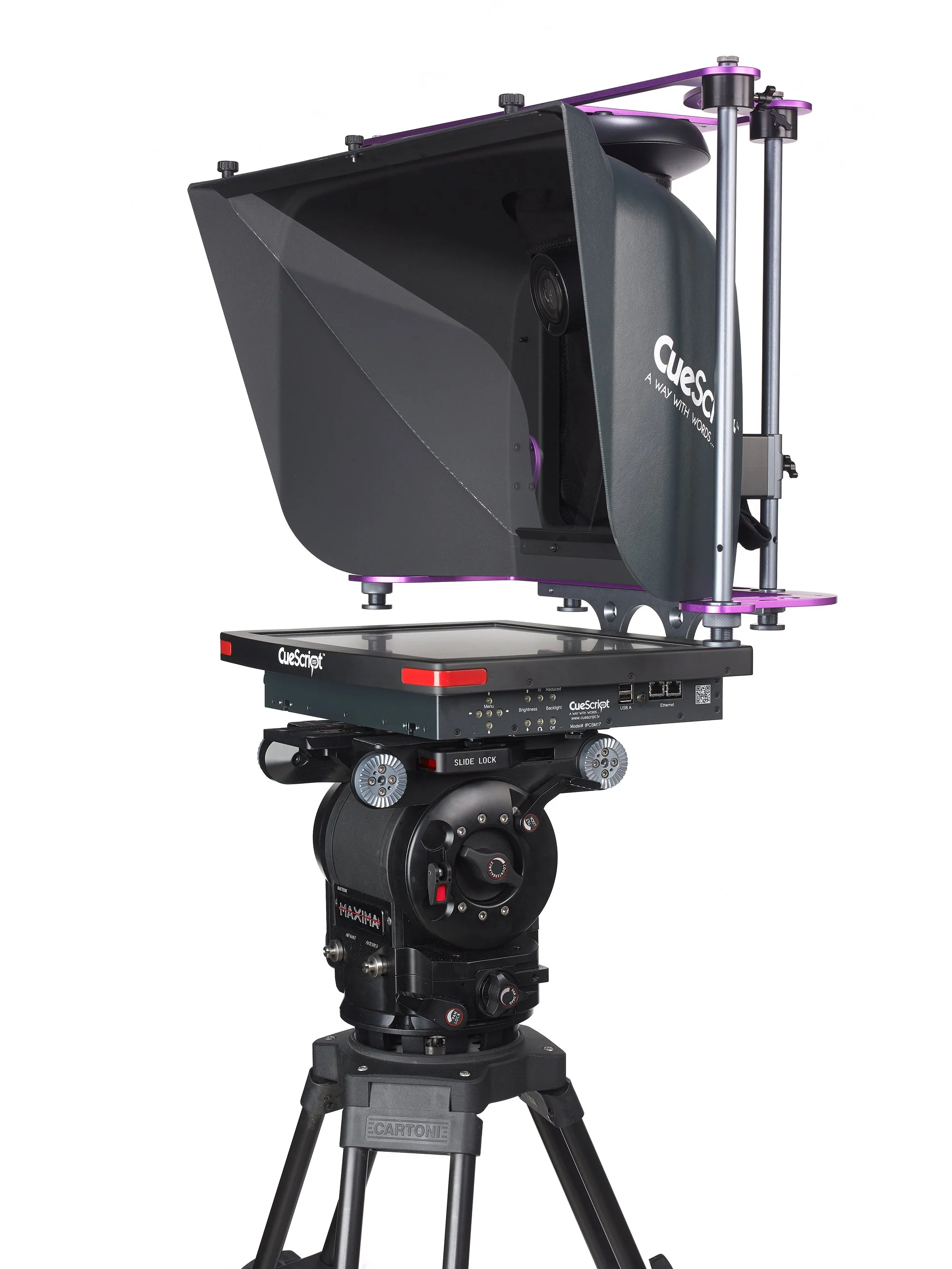

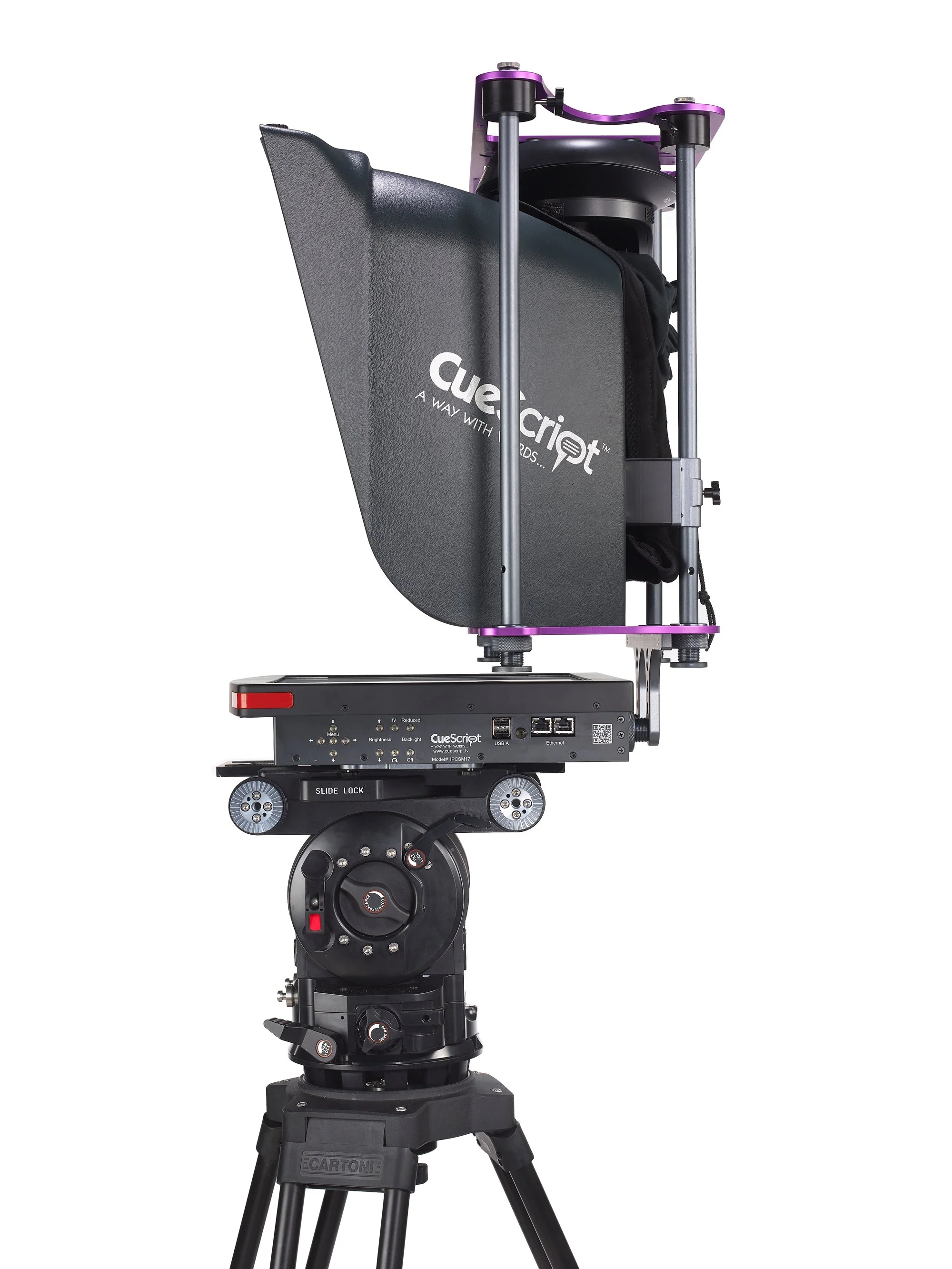

The CueScript 15” PTZ System comes with;

  • CSM15 Teleprompter Monitor

  • CSHPTZ Teleprompter Hood

  • CSMPTZ Mount for Tripod & Lighting stand.

CSHPTZ Teleprompter Hood - Specifically designed with PTZ cameras in mind, the CSHPTZ Hood allows a camera to be mounted upside down within the prompter display, removing the operational limitations that other prompting displays have caused in the past by allowing the camera operator greater movement in the shots they can achieve.

CSMPTZ Mount for Tripod & Lighting Stand - The CueScript Mount has been designed with a PTZ camera in mind, it allows the camera to hang within the Teleprompter hood, ensuring greater tilt and pan controls are available to the camera operator.

CSM15 Teleprompter Monitor - The CueScript CSM15 prompter is for use in studio as well as on location. The sleek design has an integrated mounting system allowing for quick, easy setup and the LED high brightness screen means clarity of the autocue isn't impaired if shooting in daylight.

*Tripod not included

Add To Cart

TECHNICAL SPECIFICATION:

CSM15

  • Screen Size: 15” diagonal

  • Brightness: 1500 cd/m2

  • Contrast Ratio: 700:1

  • Native Resolution: 1024 x 768 (XGA)

  • Viewing Angle: 160°(H), 140°(V)

  • Backlight Technology: High Brightness LED with backlight saver mode

  • Controls: Illuminated LED push-buttons with adjustable brightness

DIMENSIONS

  • Front to Back: 11.52” (292mm)

  • Right to Left: 14.16” (360mm)

  • Depth: 2.67” (68mm)

  • Monitor only weight: 8.2lbs/3.7kg

  • Complete weight with Hood, Glass & Mount Plate: 9.6kg / 21.1lbs

VIDEO

  • Autosensing PAL/NTSC/VGA/HDMI/HD/HD-SDI

  • Composite 75 Ohms

  • Looping video output: HD-SDI & Composite

POWER INPUTS & CONNECTORS

  • Internal PSU:

  • IEC Wide Range 100-264 AC & 150VDC

  • XLR 4pin 12V DC 3.3A min(40w) 5.5A max(66w)

POWER CONSUMPTION

  • 3 Mode adjustable power input:

  • Low - 17 Watts

  • Medium - 19 Watts

  • High - 24 Watts

ADDITIONAL CONNECTORS

  • Dual USB 5V Out: Tally DC

  • Tally Sensor: Mini USB Tally Sensor, 5-12V Tally input

  • 4 Pin XLR DC Out : 12V 4A = 48 Watts

CERTIFICATIONS

  • CE, TUV, FCC, C-Tick, PSE, RoHs

CSHPTZ - CUESCRIPT PTZ TELEPROMPTER HOOD

  • Complete with the Medium Wide View Glass (CSGMWV), light shroud and mounting hardware for easy installation.

  • Suitable for the 15", 17" CueScript Monitors: EMC15/ EMC17/ CSM15/ CSM17/ IPCSM17

CSMPTZ - PTZ MOUNT PLATE

  • Weight of CSMPTZ: 4.6lbs/2.1kg
