Cuescript 15" Teleprompter System


Cuescript 15" Teleprompter System

$0.00

  • CSM15 Teleprompter Monitor

  • CSHM Teleprompter Hood

  • CSMPL Large Mount Purple Plate

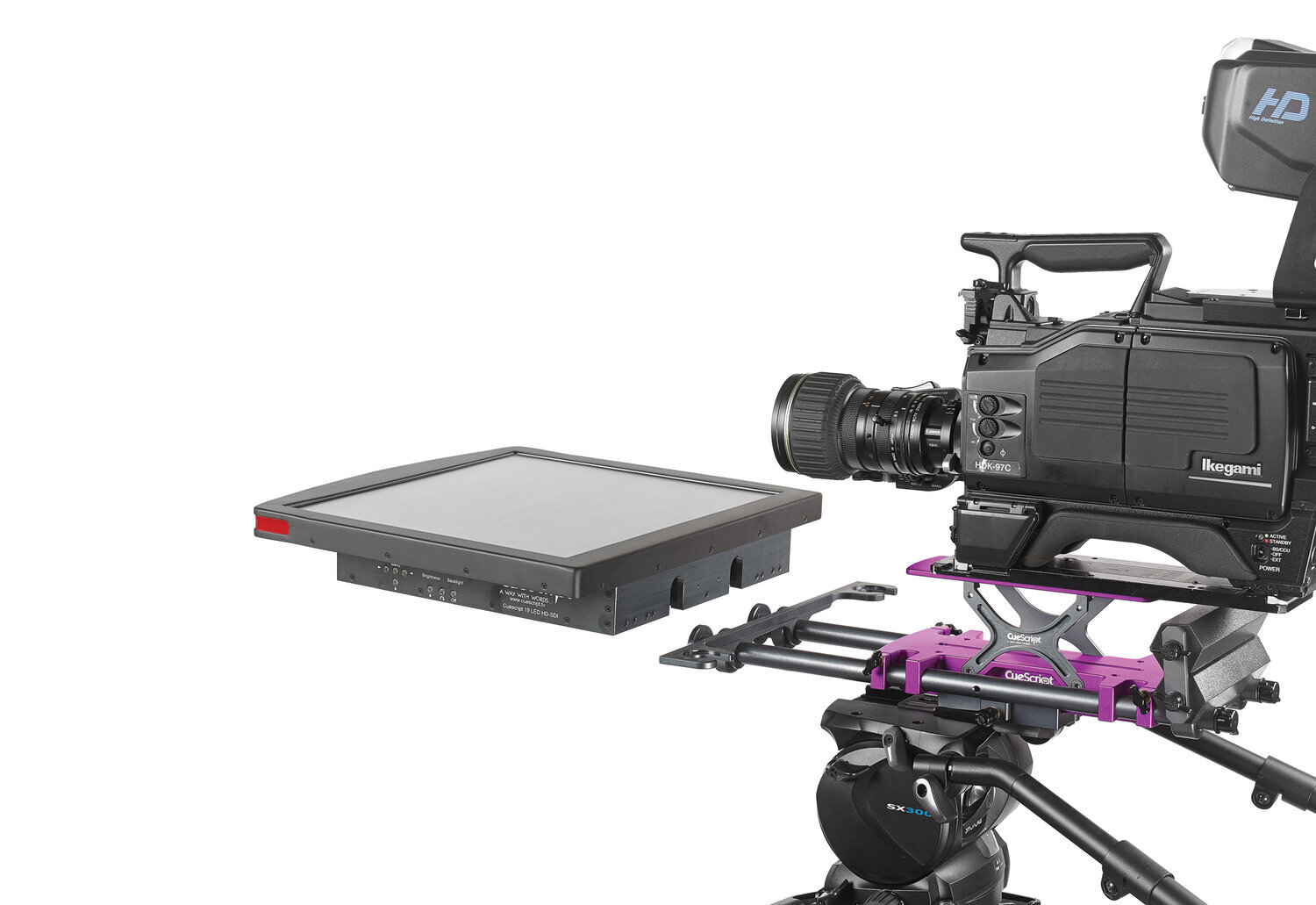

CSM15 Teleprompter Monitor - The CueScript CSM15 prompter is for use in studio as well as on location. The sleek design has an integrated mounting system allowing for quick, easy setup and the LED high brightness screen means clarity of the autocue isn't impaired if shooting in daylight.

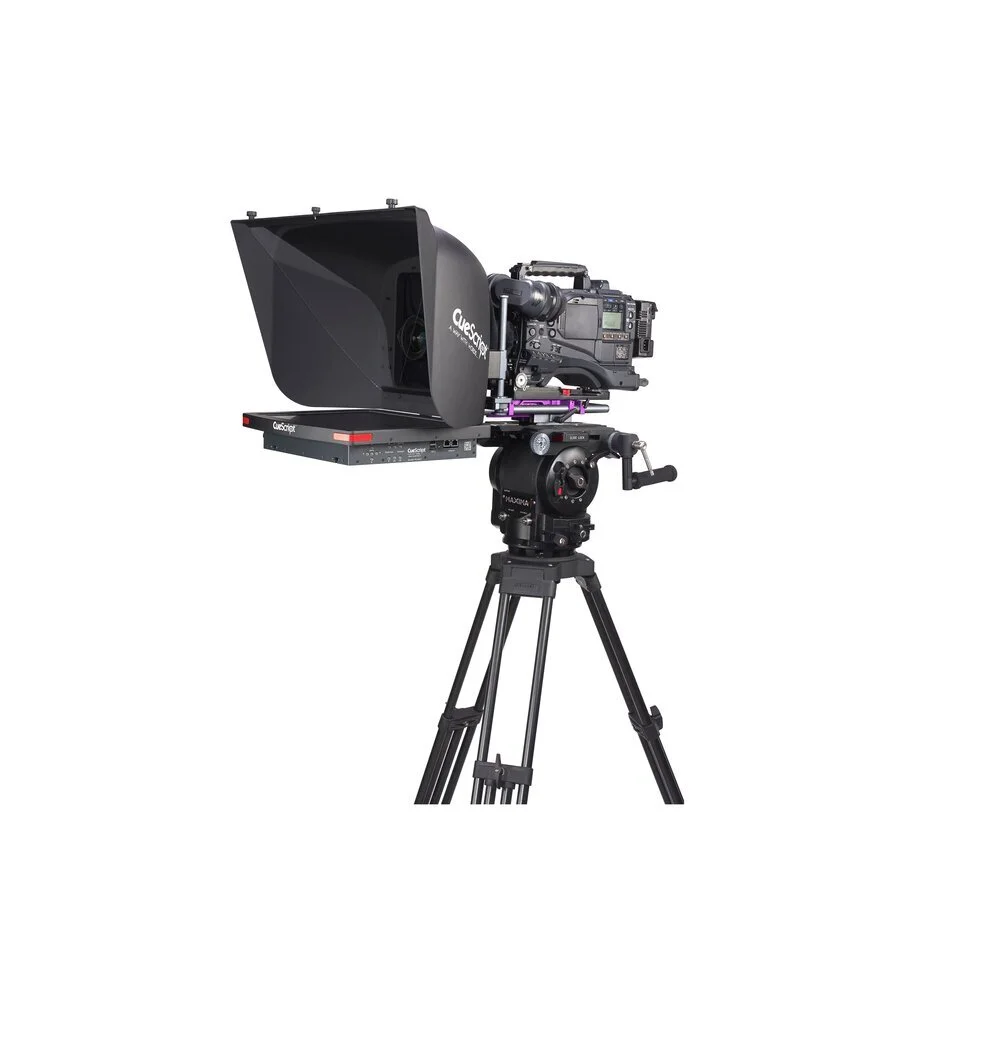

CSHM Teleprompter Hood - CueScript's molded Teleprompter Hoods, available in medium (CSHM) or large (CSHL) sizes, have a unique curved design. The reasoning behind this was to remove the ridges found in conventional prompter hoods that reflect light from the monitor back into the camera causing flares.

CSMPL Large Mount Purple Plate - The CueScript Mount Purple has been designed with ease of use in mind, allowing seamless setup and balance without the use of tools.

Add To Cart

Technical Specification:

CSM15

  • Screen Size: 15” diagonal

  • Brightness: 1500 cd/m2

  • Contrast Ratio: 700:1

  • Native Resolution: 1024 x 768 (XGA)

  • Viewing Angle: 160°(H), 140°(V)

  • Backlight Technology: High Brightness LED with backlight saver mode

  • Controls: Illuminated LED push-buttons with adjustable brightness

Dimensions

  • Front to Back: 11.52” (292mm)

  • Right to Left: 14.16” (360mm)

  • Depth: 2.67” (68mm)

  • Monitor only weight: 8.2lbs/3.7kg

  • Complete weight with Large Hood, Glass & Mount Purple: 20.6lbs/9.4kg

Video

  • Autosensing PAL/NTSC/VGA/HDMI/HD/HD-SDI

  • Composite 75 Ohms

  • Looping video output: HD-SDI & Composite

Power Inputs & Connectors

  • Internal PSU:

  • IEC Wide Range 100-264 AC & 150VDC

  • XLR 4pin 12V DC 3.3A min(40w) 5.5A max(66w)

Power Consumption

  • 3 Mode adjustable power input:

  • Low - 17 Watts

  • Medium - 19 Watts

  • High - 24 Watts

Additional Connectors

  • Dual USB 5V Out: Tally DC

  • Tally Sensor: Mini USB Tally Sensor, 5-12V Tally input

  • 4 Pin XLR DC Out : 12V 4A = 48 Watts

Certifications

  • CE, TUV, FCC, C-Tick, PSE, RoHs

Mounting

  • Integrated 'On-Air' Talent Monitor mounting rails.

  • CueLock mounting system built in for fast, secure setup and release.

CSHM - CueScript Medium Teleprompter Hood

  • Complete with the Medium Wide View Glass (CSGMWV), light shroud and mounting hardware for the CueLock easy installation system.

  • Weight: 8.2lbs/3.7kg

  • Suitable for the 15", 17" and 19" CueScript Monitors: EMC15/ EMC17/ CSM15/ CSM17/ CSM19/ IPCSM17/ IPCSM19

CSMPL - Large Mount Purple Plate

  • Weight of CSMPL: 4.6lbs/2.1kg

  • Weight of CSMPL with Riser Plate attached: 5.2lbs/2.4kg
